The characteristics of Chinese medicine extract spray dryer

View: 7508/06/2021

Traditional Chinese medicine extract spray dryer is the application of centrifugal spray drying technology in the drying of specific materials. It is also a drying device that uses a high-speed centrifugal atomizer to disperse materials into fine particles, fully in contact with hot air, complete instant drying and form powder finished products. The drying equipment is specially used to solve the Chinese medicine extract and plant extract spray dryer, it effectively solves the original LPG high-speed spray dryer in the Chinese medicine extract drying problems.

TCM extract spray dryer features:

1. In order to prevent the material department from producing sticky wall equipment, air sweeping wall and tower wall jacket cooling structures are provided to effectively prevent the sticky wall coking of products. Improve product quality and yield.

2, Special finished product air delivery system can separate dry finished products from the hot and humid air in the system in time to avoid the possibility of moisture absorption and moisture recovery of finished products.

3, The air into the spray dryer adopts three levels of air purification so that the inlet air reaches the requirement of 300,000;

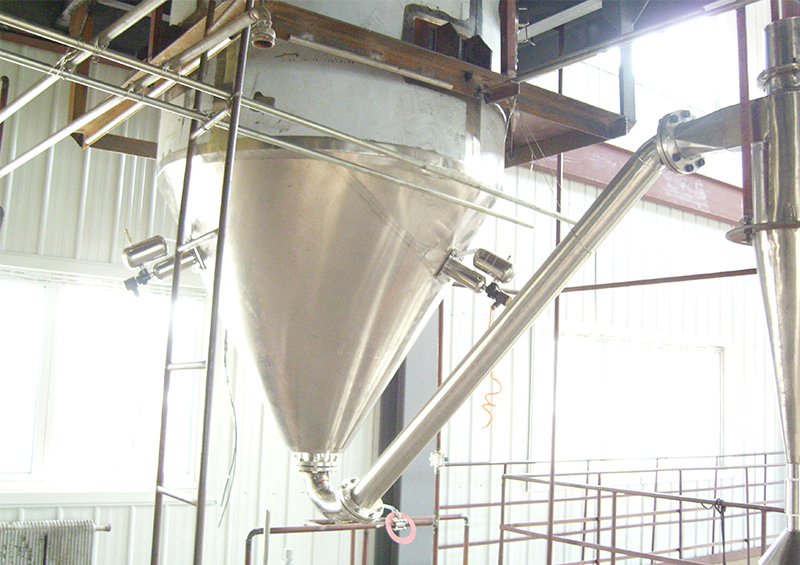

spray dryer

4, The use of fast opening punching device, suitable for many varieties of production requirements;

5, Material collection adopts two-stage cyclone dust removal device or one stage cyclone dust removal + wet dust collector;

6. The volume and configuration of the spray tower are adjusted according to the physical properties to make it more practical;

7, Can choose PLC control, program control system screen display;

8. The design and production of the whole drying system of the spray dryer meet the requirements of GMP;

9, The user can choose one of type A, B, C according to the property when ordering to achieve the adaptability between the equipment and the property.
